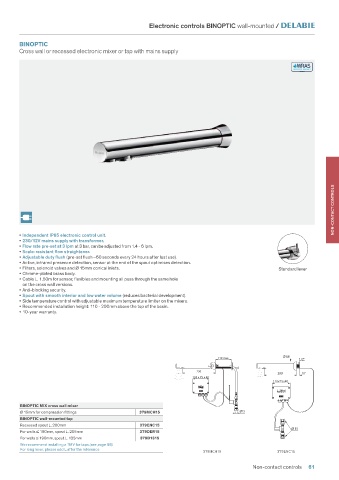

Electronic controls BINOPTIC wall-mounted /


        BINOPTIC
        Cross wall or recessed electronic mixer or tap with mains supply



























                                                                                                                      NON-CONTACT CONTROLS









        • Independent IP65 electronic control unit.
        • 230/12V mains supply with transformer.
        • Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
        • Scale-resistant flow straightener.
        • Adjustable duty flush (pre-set flush ~60 seconds every 24 hours after last use).
        • Active, infrared presence detection, sensor at the end of the spout optimises detection.
        • Filters, solenoid valves and Ø 15mm conical inlets.                                      Standard lever
        • Chrome-plated brass body.
        • Cable L. 1.50m for sensor, flexibles and mounting all pass through the same hole
         on the cross wall versions.
        • Anti-blocking security.
        • Spout with smooth interior and low water volume (reduces bacterial development).
        • Side temperature control with adjustable maximum temperature limiter on the mixers.
        • Recommended installation height: 110 - 200mm above the top of the basin.
        • 10-year warranty.








                                                                                                    Ø 60
                                                                             110 max
                                                                                                          1/2"
                                                                      230
                                                                                                   200     17
                                                                     105 x 75 x 40
                                                                                                 110x75x40


        BINOPTIC MIX cross wall mixer
        Ø 15mm for compression fittings            379MCH15                           Ø15
        BINOPTIC wall-mounted tap
        Recessed spout L. 200mm                   379ENC15
                                                                                                       Ø 15
        For walls ≤ 190mm, spout L. 205mm         379DER15
        For walls ≤ 190mm, spout L. 135mm         379D1315
        We recommend installing a TMV for taps (see page 86)
        For long lever, please add L after the reference
                                                                        379MCH15                  379ENC15
