1-METRE MARK FROM
                 FINISHED FLOOR LEVEL
                           Easy to install











                HOUSING FIXED BY CLIPS
                    Quick and easy to install












                         SPACE SAVING
                           350   180mm                                                    TELESCOPIC
                                                                                          FLUSH TUBE
                                                                                          Easy to install











               PIPE AND SOIL PIPE FIXED
                             BY CLIPS
                    Quick and easy to install


                                                                                          PLASTIC SHEATHS
                                                                                          Protect the WC pan

                 180 OR 230MM CENTRES
               suitable for all types of WC pan



                                                                                                                          WCs - FRAMES
                         ABS SOIL PIPE                                                                                     BED PAN CLEANERS




                      ADJUSTABLE PAN
                              HEIGHT
                           Easy to install








               LARGE SELF-SUPPORTING
                                FEET

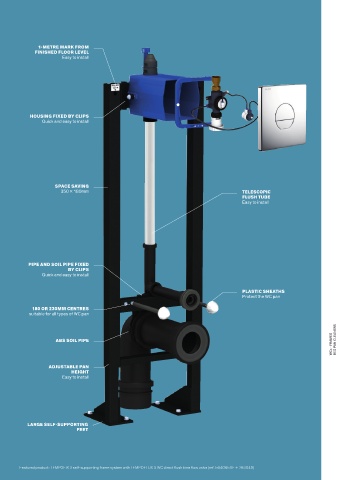

            Featured product: TEMPOFIX 3 self-supporting frame system with TEMPOFLUX 3 WC direct flush time flow valve (ref. 564065DE + 763040)
