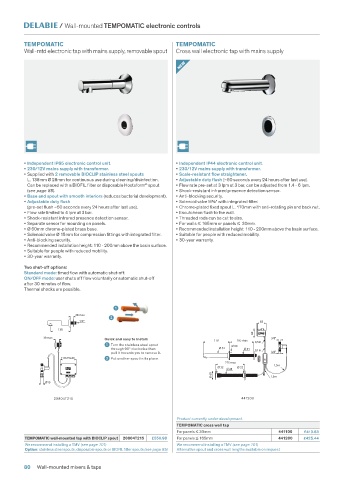

/ Wall-mounted TEMPOMATIC electronic controls

TEMPOMATIC TEMPOMATIC
Wall-mtd electronic tap with mains supply, removable spout Cross wall electronic tap with mains supply

NEW

• Independent IP65 electronic control unit. • Independent IP44 electronic control unit.
• 230/12V mains supply with transformer. • 230/12V mains supply with transformer.
• Supplied with 2 removable BIOCLIP stainless steel spouts • Scale-resistant flow straightener.
L. 138mm Ø 28mm for continuous use during cleaning/disinfection. • Adjustable duty flush (~60 seconds every 24 hours after last use).
Can be replaced with a BIOFIL filter or disposable Hostaform spout • Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
®
(see page 85). • Shock-resistant infrared presence detection sensor.
• Base and spout with smooth interiors (reduces bacterial development). • Anti-blocking security.
• Adjustable duty flush • Solenoid valve M⅜" with integrated filter.
(pre-set flush ~60 seconds every 24 hours after last use). • Chrome-plated fixed spout L. 170mm with anti-rotating pin and back nut.
• Flow rate limited to 4 lpm at 3 bar. • Escutcheon flush to the wall.
• Shock-resistant infrared presence detection sensor. • Threaded rods can be cut to size.
• Separate sensor for mounting on panels. • For walls ≤ 165mm or panels ≤ 30mm.
• Ø 60mm chrome-plated brass base. • Recommended installation height: 110 - 200mm above the basin surface.
• Solenoid valve Ø 15mm for compression fittings with integrated filter. • Suitable for people with reduced mobility.
• Anti-blocking security. • 30-year warranty.
• Recommended installation height: 110 - 200mm above the basin surface.
• Suitable for people with reduced mobility.
• 30-year warranty.

Two shut-off options:
Standard mode: timed flow with automatic shut-off.
ON/OFF mode: user shuts off flow voluntarily or automatic shut-off
after 30 minutes of flow.
Thermal shocks are possible.


28 max
2
1/2" 62
138
62
30 max Quick and easy to install: 170 165 max 3/8"
 Turn the stainless steel spout Ø 60 0,5m
through 90º clockwise then Ø 32 Ø 21 0,1m
pull it towards you to remove it. 3/8"
110x75x40 2 Put another spout in its place.
275 max
1,5m
Ø 32 Ø 32
Ø 21
Ø 60 1,5m
Ø15

20804T215 441200

Product currently under development.
TEMPOMATIC cross wall tap
For panels ≤ 30mm 441100 £413.63
TEMPOMATIC wall-mounted tap with BIOCLIP spout 20804T215 £550.98 For panels ≤ 165mm 441200 £425.44
We recommend installing a TMV (see page 101) We recommend installing a TMV (see page 101)
Option: stainless steel spouts, disposable spouts or BIOFIL filter spouts (see page 85) Alternative spout and cross wall lengths available on request

80 Wall-mounted mixers & taps
