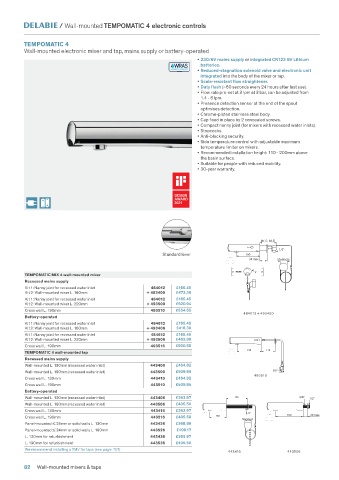

/ Wall-mounted TEMPOMATIC 4 electronic controls

TEMPOMATIC 4
Wall-mounted electronic mixer and tap, mains supply or battery-operated
• 230/6V mains supply or integrated CR123 6V Lithium
batteries.
• Reduced-stagnation solenoid valve and electronic unit
integrated into the body of the mixer or tap.
• Scale-resistant flow straightener.
• Duty flush (~60 seconds every 24 hours after last use).
• Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from
1.4 - 6 lpm.
• Presence detection sensor at the end of the spout
optimises detection.
• Chrome-plated stainless steel body.
• Cap fixed in place by 2 concealed screws.
• Compact nanny joint (for mixers with recessed water inlets).
• Stopcocks.
• Anti-blocking security.
• Side temperature control with adjustable maximum
temperature limiter on mixers.
• Recommended installation height: 110 - 200mm above
the basin surface.
• Suitable for people with reduced mobility.
• 30-year warranty.

[81,5 ; 83,5]
1/2"
Standard lever 160
34 max 50x50x25

TEMPOMATIC MIX 4 wall-mounted mixer
Recessed mains supply
Kit 1: Nanny joint for recessed water inlet 484012 £165.45
Kit 2: Wall-mounted mixer L. 160mm + 493400 £473.36
Kit 1: Nanny joint for recessed water inlet 484012 £165.45
Kit 2: Wall-mounted mixer L. 220mm + 493500 £520.94
Cross wall L. 190mm 493510 £554.55
484012 + 493400
Battery-operated
Kit 1: Nanny joint for recessed water inlet 484612 £165.45
Kit 2: Wall-mounted mixer L. 160mm + 493406 £416.30
Kit 1: Nanny joint for recessed water inlet 484612 £165.45
Kit 2: Wall-mounted mixer L. 220mm + 493506 £463.89
Cross wall L. 190mm 493516 £500.50
190 110
TEMPOMATIC 4 wall-mounted tap
Recessed mains supply
Wall-mounted L. 130mm (recessed water inlet) 443400 £464.82
Wall-mounted L. 190mm (recessed water inlet) 443500 £509.95 3/8"
493516
Cross wall L. 130mm 443410 £464.82
Cross wall L. 190mm 443510 £509.95
Battery-operated
Wall-mounted L. 130mm (recessed water inlet) 443406 £363.97 165 3/8" 1/2"
Wall-mounted L. 190mm (recessed water inlet) 443506 £405.50
Cross wall L. 130mm 443416 £363.97
1/2" 190 30 max
Cross wall L. 190mm 443516 £405.50 130
50x50x25
Panel-mounted ≤ 24mm or solid walls L. 130mm 443426 £368.86
Panel-mounted ≤ 24mm or solid walls L. 190mm 443526 £409.17
L. 130mm for refurbishment 443436 £363.97
L. 190mm for refurbishment 443536 £405.50
We recommend installing a TMV for taps (see page 101)
443410 443506
82 Wall-mounted mixers & taps
