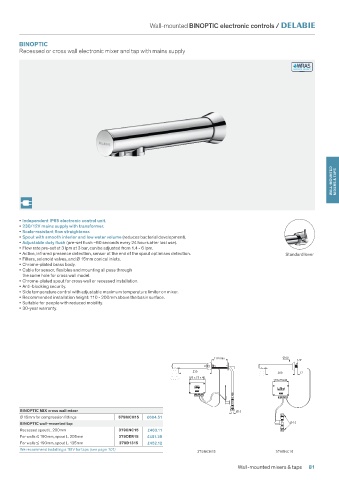

Page 83 - Water_Controls_for_Healthcare

Wall-mounted BINOPTIC electronic controls /

BINOPTIC
Recessed or cross wall electronic mixer and tap with mains supply

WALL-MOUNTED MIXERS & TAPS

• Independent IP65 electronic control unit.
• 230/12V mains supply with transformer.
• Scale-resistant flow straightener.
• Spout with smooth interior and low water volume (reduces bacterial development).
• Adjustable duty flush (pre-set flush ~60 seconds every 24 hours after last use).
• Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
• Active, infrared presence detection, sensor at the end of the spout optimises detection. Standard lever
• Filters, solenoid valves, and Ø 15mm conical inlets.
• Chrome-plated brass body.
• Cable for sensor, flexibles and mounting all pass through
the same hole for cross wall model.
• Chrome-plated spout for cross wall or recessed installation.
• Anti-blocking security.
• Side temperature control with adjustable maximum temperature limiter on mixer.
• Recommended installation height: 110 - 200mm above the basin surface.
• Suitable for people with reduced mobility.
• 30-year warranty.

110 max Ø 60
1/2"
230 200 17
105 x 75 x 40
110x75x40

BINOPTIC MIX cross wall mixer Ø15
Ø 15mm for compression fittings 379MCH15 £604.51
BINOPTIC wall-mounted tap Ø 15
Recessed spout L. 200mm 379ENC15 £463.11
For walls ≤ 190mm, spout L. 205mm 379DER15 £451.39
For walls ≤ 190mm, spout L. 135mm 379D1315 £452.12
We recommend installing a TMV for taps (see page 101)
379MCH15 379ENC15
Wall-mounted mixers & taps 81
