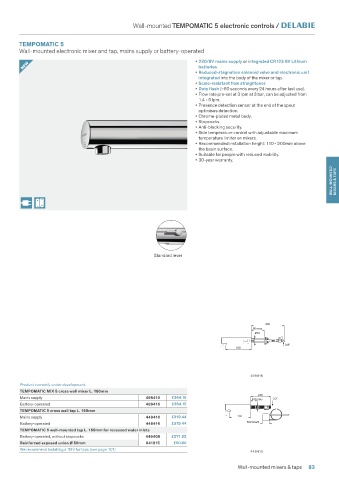

Page 85 - Water_Controls_for_Healthcare

Wall-mounted TEMPOMATIC 5 electronic controls /

TEMPOMATIC 5
Wall-mounted electronic mixer and tap, mains supply or battery-operated

• 230/6V mains supply or integrated CR123 6V Lithium
NEW batteries.
• Reduced-stagnation solenoid valve and electronic unit
integrated into the body of the mixer or tap.
• Scale-resistant flow straightener.
• Duty flush (~60 seconds every 24 hours after last use).
• Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from
1.4 - 6 lpm.
• Presence detection sensor at the end of the spout
optimises detection.
• Chrome-plated metal body.
• Stopcocks.
• Anti-blocking security.
• Side temperature control with adjustable maximum
temperature limiter on mixers.
• Recommended installation height: 110 - 200mm above
the basin surface.
• Suitable for people with reduced mobility.
• 30-year warranty.
WALL-MOUNTED MIXERS & TAPS

Standard lever

400
90 max
Ø35

3/8"
180

499416
Product currently under development.
TEMPOMATIC MIX 5 cross wall mixer L. 180mm
230
Mains supply 499410 £364.15 180 max 1/2"
Battery-operated 499416 £364.15
TEMPOMATIC 5 cross wall tap L. 150mm
Mains supply 449410 £319.44 150
Battery-operated 449416 £319.44 50x50x25
TEMPOMATIC 5 wall-mounted tap L. 150mm for recessed water inlets
Battery-operated, without stopcocks 449406 £271.82
Reinforced exposed union Ø 50mm 841215 £50.60
We recommend installing a TMV for taps (see page 101)
449410
Wall-mounted mixers & taps 83
