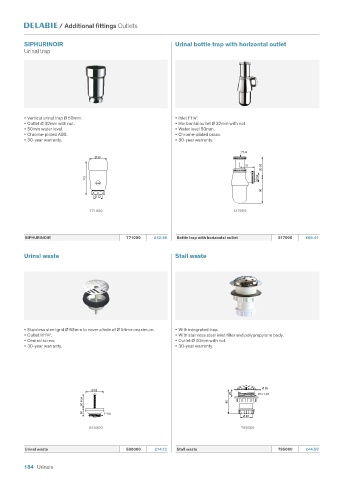

Page 186 - water-controls-for-public-and-commercial-places

/ Additional fittings Outlets

SIPHURINOIR Urinal bottle trap with horizontal outlet
Urinal trap

• Vertical urinal trap Ø 50mm. • Inlet F1¼".
• Outlet Ø 32mm with nut. • Horizontal outlet Ø 32mm with nut.
• 50mm water level. • Water level 50mm.
• Chrome-plated ABS. • Chrome-plated brass.
• 30-year warranty. • 30-year warranty.

1"1/4
Ø 50
30-95
51
115 Ø 32
90
Ø 32

771000 517000

SIPHURINOIR 771000 £42.36 Bottle trap with horizontal outlet 517000 £65.44

Urinal waste Stall waste

• Stainless steel grid Ø 63mm to cover a hole of Ø 54mm maximum. • With integrated trap.
• Outlet M1¼". • With stainless steel inlet filter and polypropylene body.
• Central screw. • Outlet Ø 40mm with nut.
• 30-year warranty. • 30-year warranty.

Ø 85
Ø 63
25 56 x 1,50
50 max 85
30 1"1/4
Ø 40
580000 785000

Urinal waste 580000 £14.12 Stall waste 785000 £44.58

184 Urinals
