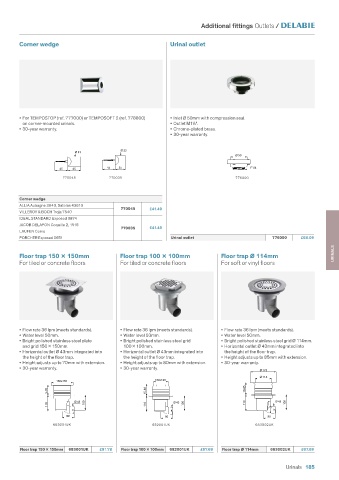

Page 187 - water-controls-for-public-and-commercial-places

Additional fittings Outlets /

Corner wedge Urinal outlet

• For TEMPOSTOP (ref. 777000) or TEMPOSOFT 2 (ref. 778800) • Inlet Ø 50mm with compression seal.
on corner-mounted urinals. • Outlet M1¼".
• 30-year warranty. • Chrome-plated brass.
• 30-year warranty.

Ø 33
Ø 33
Ø 50
45 45 45 35 1"1/4
770045 770035 776000

Corner wedge
ALLIA Aubagne 3640, Satolas 43610
770045 £41.49
VILLEROY & BOCH Troja 7540
IDEAL STANDARD Exposed 3874
JACOB DELAFON Coquille 2, 1516
770035 £41.49
LAUFEN Como
PORCHER Exposed 2651 Urinal outlet 776000 £68.09
URINALS
Floor trap 150 150mm Floor trap 100 100mm Floor trap Ø 114mm
For tiled or concrete floors For tiled or concrete floors For soft or vinyl floors

• Flow rate 36 lpm (meets standards). • Flow rate 36 lpm (meets standards). • Flow rate 36 lpm (meets standards).
• Water level 50mm. • Water level 50mm. • Water level 50mm.
• Bright polished stainless steel plate • Bright polished stainless steel grid • Bright polished stainless steel grid Ø 114mm.
and grid 150 150mm. 100 100mm. • Horizontal outlet Ø 43mm integrated into
• Horizontal outlet Ø 43mm integrated into • Horizontal outlet Ø 43mm integrated into the height of the floor trap.
the height of the floor trap. the height of the floor trap. • Height adjusts up to 85mm with extension.
• Height adjusts up to 70mm with extension. • Height adjusts up to 80mm with extension. • 30-year warranty.
• 30-year warranty. • 30-year warranty.
Ø 175
Ø 114
150x150 100x100
5-70 15-80 10-85

Ø 43 100 Ø 43 110 Ø 43 100
110 110 100
80 80 80
683001UK 682001UK 683002UK

Floor trap 150 150mm 683001UK £91.78 Floor trap 100 100mm 682001UK £67.69 Floor trap Ø 114mm 683002UK £67.69

Urinals 185
