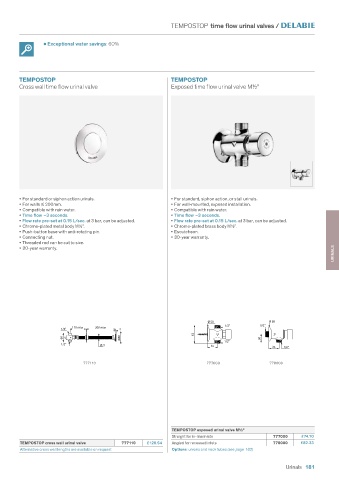

Page 183 - water-controls-for-public-and-commercial-places

TEMPOSTOP time flow urinal valves /

• Exceptional water savings: 60%

TEMPOSTOP TEMPOSTOP
Cross wall time flow urinal valve Exposed time flow urinal valve M½"

• For standard or siphon action urinals. • For standard, siphon action, or stall urinals.
• For walls ≤ 200mm. • For wall-mounted, exposed installation.
• Compatible with rain water. • Compatible with rain water.
• Time flow ~3 seconds. • Time flow ~3 seconds.
• Flow rate pre-set at 0.15 L/sec. at 3 bar, can be adjusted. • Flow rate pre-set at 0.15 L/sec. at 3 bar, can be adjusted.
• Chrome-plated metal body M½". • Chrome-plated brass body M½".
• Push-button base with anti-rotating pin. • Escutcheon.
• Connecting nut. • 30-year warranty.
• Threaded rod can be cut to size.
URINALS
• 30-year warranty.

Ø 50 Ø 50
1/2" 1/2"
110 max 200 max
1/2" 4
62
60 Ø50 30
1/2"
1/2" Ø21 35 35 1/2"
777110 777000 778000

TEMPOSTOP exposed urinal valve M½"
Straight for in-line inlets 777000 £74.70
TEMPOSTOP cross wall urinal valve 777110 £126.54 Angled for recessed inlets 778000 £82.33
Alternative cross wall lengths are available on request Options: unions and neck tubes (see page 182)

Urinals 181
