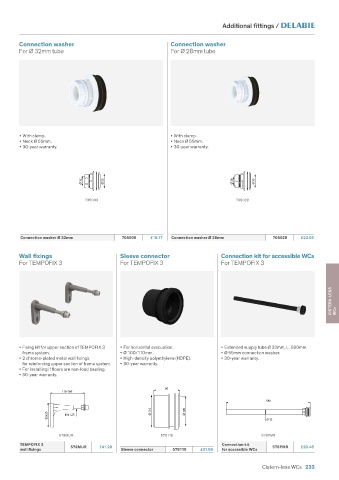

Page 235 - water-controls-for-public-and-commercial-places

Additional fittings /

Connection washer Connection washer
For Ø 32mm tube For Ø 28mm tube

• With clamp. • With clamp.
• Neck Ø 55mm. • Neck Ø 55mm.
• 30-year warranty. • 30-year warranty.

Ø 32 Ø 55 Ø 28 Ø 55

705000 705028

Connection washer Ø 32mm 705000 £18.17 Connection washer Ø 28mm 705028 £23.65

Wall fixings Sleeve connector Connection kit for accessible WCs
For TEMPOFIX 3 For TEMPOFIX 3 For TEMPOFIX 3

CISTERN-LESS WCs

• Fixing kit for upper section of TEMPOFIX 3 • For horizontal evacuation. • Extended supply tube Ø 32mm, L. 580mm.
frame system. • Ø 100/110mm. • Ø 55mm connection washer.
• 2 chrome-plated metal wall fixings, • High-density polyethylene (HDPE). • 30-year warranty.
for reinforcing upper section of frame system. • 30-year warranty.
• For installing if floors are non-load bearing.
• 30-year warranty.

90
118-160
580
Ø 110 Ø 100
85x30 10x1,25
Ø 32

578MUR 578110 578PMR
TEMPOFIX 3 578MUR £41.28 Connection kit 578PMR £20.48
wall fixings Sleeve connector 578110 £31.68 for accessible WCs

Cistern-less WCs 233
