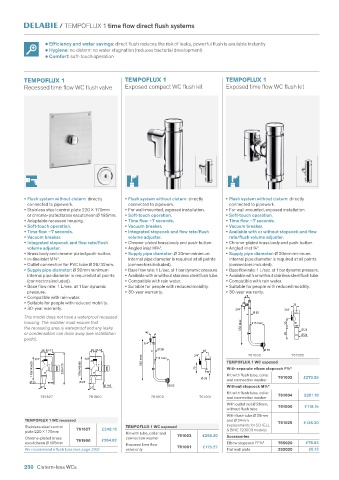

/ TEMPOFLUX 1 time flow direct flush systems

• Efficiency and water savings: direct flush reduces the risk of leaks, powerful flush is available instantly
• Hygiene: no cistern: no water stagnation (reduces bacterial development)
• Comfort: soft-touch operation

TEMPOFLUX 1 TEMPOFLUX 1 TEMPOFLUX 1
Recessed time flow WC flush valve Exposed compact WC flush kit Exposed time flow WC flush kit

• Flush system without cistern: directly • Flush system without cistern: directly • Flush system without cistern: directly
connected to pipework. connected to pipework. connected to pipework.
• Stainless steel control plate 220 170mm • For wall-mounted, exposed installation. • For wall-mounted, exposed installation.
or chrome-plated brass escutcheon Ø 195mm. • Soft-touch operation. • Soft-touch operation.
• Adaptable recessed housing. • Time flow ~7 seconds. • Time flow ~7 seconds.
• Soft-touch operation. • Vacuum breaker. • Vacuum breaker.
• Time flow ~7 seconds. • Integrated stopcock and flow rate/flush • Available with or without stopcock and flow
• Vacuum breaker. volume adjuster. rate/flush volume adjuster.
• Integrated stopcock and flow rate/flush • Chrome-plated brass body and push-button. • Chrome-plated brass body and push-button.
volume adjuster. • Angled inlet M¾". • Angled inlet ¾".
• Brass body and chrome-plated push-button. • Supply pipe diameter: Ø 20mm minimum • Supply pipe diameter: Ø 20mm minimum
• In-line inlet M¾". internal pipe diameter is required at all points internal pipe diameter is required at all points
• Outlet connection for PVC tube Ø 26/32mm. (connectors included). (connectors included).
• Supply pipe diameter: Ø 20mm minimum • Base flow rate: 1 L/sec. at 1 bar dynamic pressure. • Base flow rate: 1 L/sec. at 1 bar dynamic pressure.
internal pipe diameter is required at all points • Available with or without stainless steel flush tube. • Available with or without stainless steel flush tube.
(connectors included). • Compatible with rain water. • Compatible with rain water.
• Base flow rate: 1 L/sec. at 1 bar dynamic • Suitable for people with reduced mobility. • Suitable for people with reduced mobility.
pressure. • 30-year warranty. • 30-year warranty.
• Compatible with rain water. 75
• Suitable for people with reduced mobility. 25
• 30-year warranty. 3/4" 3/4"
Ø 28
This model does not have a waterproof recessed
housing. The installer must ensure that 215 max 55
the recessing area is waterproof and any leaks 550 max Ø 25
or condensation can drain away (see installation 46 85 Ø 24
guide).
3/4"
38 45-72 38 42-65 Ø 28 46 Ø 55
761002
3/4" 3/4" 565 max 215 max 3/4" TEMPOFLUX 1 WC exposed 761025
170x145x80 220x170 170x145x80 70 With separate elbow stopcock F¾"

Ø 28 Kit with flush tube, collar 761002 £270.25
and connection washer
Ø 25 Ø 25
27 27 Ø 195 Ø 55 Without stopcock M¾"
Kit with flush tube, collar
761627 761900 761003 761001 and connection washer 761004 £201.18
With outlet nut Ø 28mm, 761000 £118.15
without flush tube
With flush tube Ø 25mm
TEMPOFLUX 1 WC recessed and Ø 24mm 761025 £136.30
Stainless steel control 761627 £248.16 TEMPOFLUX 1 WC exposed (replacements for SCHELL
plate 220 170mm & BINE 120000 models)
Kit with tube, collar and
Chrome-plated brass £264.62 connection washer 761003 £258.30 Accessories
escutcheon Ø 195mm 761900 Exposed time flow Elbow stopcock FF¾" 765020 £76.03
We recommend a flush tube (see page 232) valve only 761001 £175.27 Flat wall plate 292020 £6.13

230 Cistern-less WCs
