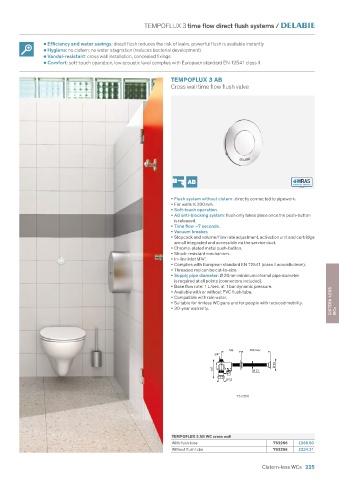

Page 227 - water-controls-for-public-and-commercial-places

TEMPOFLUX 3 time flow direct flush systems /

• Efficiency and water savings: direct flush reduces the risk of leaks, powerful flush is available instantly
• Hygiene: no cistern: no water stagnation (reduces bacterial development)
• Vandal-resistant: cross wall installation, concealed fixings
• Comfort: soft-touch operation, low acoustic level complies with European standard EN 12541 class II

TEMPOFLUX 3 AB
Cross wall time flow flush valve

• Flush system without cistern: directly connected to pipework.
• For walls ≤ 200mm.
• Soft-touch operation.
• AB anti-blocking system: flush only takes place once the push-button
is released.
• Time flow ~7 seconds.
• Vacuum breaker.
• Stopcock and volume/flow rate adjustment, activation unit and cartridge
are all integrated and accessible via the service duct.
• Chrome-plated metal push-button.
• Shock-resistant mechanism.
• In-line inlet M¾".
• Complies with European standard EN 12541 (class II acoustic level).
• Threaded rod can be cut-to-size.
• Supply pipe diameter: Ø 20mm minimum internal pipe diameter
is required at all points (connectors included).
• Base flow rate: 1 L/sec. at 1 bar dynamic pressure.
• Available with or without PVC flush tube.
• Compatible with rain water.
• Suitable for rimless WC pans and for people with reduced mobility. CISTERN-LESS
• 30-year warranty. WCs

136 200 max
3/4"
Ø 50
147 Ø 21

Ø 32

763256

TEMPOFLUX 3 AB WC cross wall
With flush tube 763266 £266.60
Without flush tube 763256 £224.21

Cistern-less WCs 225
