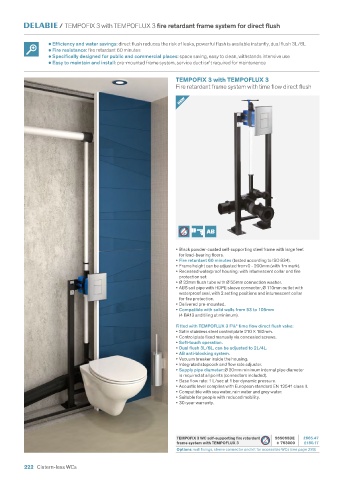

/ TEMPOFIX 3 with TEMPOFLUX 3 fire retardant frame system for direct flush

• Efficiency and water savings: direct flush reduces the risk of leaks, powerful flush is available instantly, dual flush 3L/6L
• Fire resistance: fire retardant 60 minutes
• Specifically designed for public and commercial places: space saving, easy to clean, withstands intensive use
• Easy to maintain and install: pre-mounted frame system, service duct isn't required for maintenance

TEMPOFIX 3 with TEMPOFLUX 3
Fire retardant frame system with time flow direct flush

NEW

• Black powder-coated self-supporting steel frame with large feet
for load-bearing floors.
• Fire retardant 60 minutes (tested according to ISO 834).
• Frame height can be adjusted from 0 - 200mm (with 1m mark).
• Recessed waterproof housing: with intumescent collar and fire
protection set.
• Ø 32mm flush tube with Ø 55mm connection washer.
• ABS soil pipe with HDPE sleeve connector, Ø 110mm outlet with
waterproof seal, with 2 setting positions and intumescent collar
for fire protection.
• Delivered pre-mounted.
• Compatible with solid walls from 53 to 105mm
(4 BA13 and tiling at minimum).
Fitted with TEMPOFLUX 3 F¾" time flow direct flush valve:
• Satin stainless steel control plate 210 162mm.
• Control plate fixed manually via concealed screws.
• Soft-touch operation.
• Dual flush 3L/6L, can be adjusted to 2L/4L.
• AB anti-blocking system.
• Vacuum breaker inside the housing.
• Integrated stopcock and flow rate adjuster.
• Supply pipe diameter: Ø 20mm minimum internal pipe diameter
is required at all points (connectors included).
• Base flow rate: 1 L/sec at 1 bar dynamic pressure.
• Acoustic level complies with European standard EN 12541 class II.
• Compatible with sea water, rain water and grey water.
• Suitable for people with reduced mobility.
• 30-year warranty.

TEMPOFIX 3 WC self-supporting fire retardant 565065DE £665.47
frame system with TEMPOFLUX 3 + 763000 £180.17
Options: wall fixings, sleeve connector and kit for accessible WCs (see page 233)

222 Cistern-less WCs
