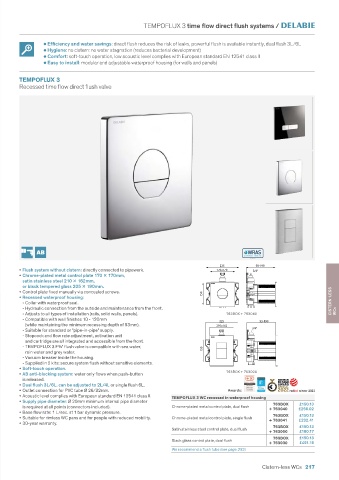

Page 219 - water-controls-for-public-and-commercial-places

TEMPOFLUX 3 time flow direct flush systems /

• Efficiency and water savings: direct flush reduces the risk of leaks, powerful flush is available instantly, dual flush 3L/6L
• Hygiene: no cistern: no water stagnation (reduces bacterial development)
• Comfort: soft-touch operation, low acoustic level complies with European standard EN 12541 class II
• Easy to install: modular and adjustable waterproof housing (for walls and panels)

TEMPOFLUX 3
Recessed time flow direct flush valve

225 93-190
• Flush system without cistern: directly connected to pipework. 170x170 3/4"
• Chrome-plated metal control plate 170 170mm,
satin stainless steel 210 162mm,
or black tempered glass 205 190mm.
• Control plate fixed manually via concealed screws. 150
• Recessed waterproof housing:
- Collar with waterproof seal. CISTERN-LESS
- Hydraulic connection from the outside and maintenance from the front.
- Adjusts to all types of installation (rails, solid walls, panels). 763BOX + 763040 WCs
- Compatible with wall finishes 10 - 120mm
225 93-190
(while maintaining the minimum recessing depth of 93mm). 210x162
- Suitable for standard or "pipe-in-pipe" supply. 3/4"
- Stopcock and flow rate adjustment, activation unit
and cartridge are all integrated and accessible from the front.
- TEMPOFLUX 3 F¾" flush valve is compatible with sea water, 150
rain water and grey water.
- Vacuum breaker inside the housing.
- Supplied in 2 kits: secure system flush without sensitive elements.
• Soft-touch operation.
• AB anti-blocking system: water only flows when push-button 763BOX + 763000
is released.
• Dual flush 3L/6L, can be adjusted to 2L/4L or single flush 6L.
• Outlet connection for PVC tube Ø 26/32mm. Awards:
• Acoustic level complies with European standard EN 12541 class II. TEMPOFLUX 3 WC recessed in waterproof housing
• Supply pipe diameter: Ø 20mm minimum internal pipe diameter
763BOX £150.13
is required at all points (connectors included). Chrome-plated metal control plate, dual flush + 763040 £256.02
• Base flow rate: 1 L/sec. at 1 bar dynamic pressure.
• Suitable for rimless WC pans and for people with reduced mobility. Chrome-plated metal control plate, single flush 763BOX £150.13
+ 763041 £232.41
• 30-year warranty.
763BOX £150.13
Satin stainless steel control plate, dual flush
+ 763000 £180.17
763BOX £150.13
Black glass control plate, dual flush
+ 763030 £451.18
We recommend a flush tube (see page 232)
Cistern-less WCs 217
