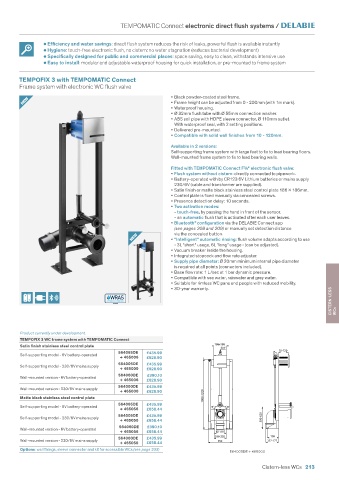

Page 215 - water-controls-for-public-and-commercial-places

TEMPOMATIC Connect electronic direct flush systems /

• Efficiency and water savings: direct flush system reduces the risk of leaks, powerful flush is available instantly
• Hygiene: touch-free electronic flush, no cistern: no water stagnation (reduces bacterial development)
• Specifically designed for public and commercial places: space saving, easy to clean, withstands intensive use
• Easy to install: modular and adjustable waterproof housing for quick installation, or pre-mounted to frame system

TEMPOFIX 3 with TEMPOMATIC Connect
Frame system with electronic WC flush valve

NEW • Black powder-coated steel frame.
• Frame height can be adjusted from 0 - 200mm (with 1m mark).
• Waterproof housing.
• Ø 32mm flush tube with Ø 55mm connection washer.
• ABS soil pipe with HDPE sleeve connector, Ø 110mm outlet.
With waterproof seal, with 2 setting positions.
• Delivered pre-mounted.
• Compatible with solid wall finishes from 10 - 120mm.

Available in 2 versions:
Self-supporting frame system with large feet to fix to load bearing floors.
Wall-mounted frame system to fix to load bearing walls.
Fitted with TEMPOMATIC Connect F¾" electronic flush valve:
• Flush system without cistern: directly connected to pipework.
• Battery-operated with by CR123 6V Lithium batteries or mains supply
230/6V (cable and transformer are supplied).
• Satin finish or matte black stainless steel control plate 186 186mm.
• Control plate is fixed manually via concealed screws.
• Presence detection delay: 10 seconds.
• Two activation modes:
- touch-free, by passing the hand in front of the sensor,
- an automatic flush that is activated after each user leaves.
• Bluetooth configuration via the DELABIE Connect app
®
(see pages 208 and 209) or manually set detection distance
via the concealed button.
NEW • "Intelligent" automatic rinsing: flush volume adapts according to use
- 3L "short" usage, 6L "long" usage - (can be adjusted).
• Vacuum breaker inside the housing.
• Integrated stopcock and flow rate adjuster.
• Supply pipe diameter: Ø 20mm minimum internal pipe diameter
is required at all points (connectors included).
• Base flow rate: 1 L/sec at 1 bar dynamic pressure.
• Compatible with sea water, rainwater and grey water.
• Suitable for rimless WC pans and people with reduced mobility.
• 30-year warranty.
CISTERN-LESS WCs

Product currently under development.
TEMPOFIX 3 WC frame system with TEMPOMATIC Connect
186x186
Satin finish stainless steel control plate
3/4"
10-120
564065DE £435.99
Self-supporting model - 6V battery-operated
+ 465006 £628.90
564005DE £435.99
Self-supporting model - 230/6V mains supply
+ 465000 £628.90
564060DE £390.10
Wall-mounted version - 6V battery-operated
+ 465006 £628.90
564000DE £435.99
Wall-mounted version - 230/6V mains supply
+ 465000 £628.90
Matte black stainless steel control plate 1000-1320
564065DE £435.99
Self-supporting model - 6V battery-operated
+ 465056 £658.44
564005DE £435.99
Self-supporting model - 230/6V mains supply 300-620
+ 465050 £658.44
564060DE £390.10
Wall-mounted version - 6V battery-operated
+ 465056 £658.44 Ø 110
564000DE £435.99 180-230 165
Wall-mounted version - 230/6V mains supply 350 157-177
+ 465050 £658.44
Options: wall fixings, sleeve connector and kit for accessible WCs (see page 233)
564005DE + 465000
Cistern-less WCs 213
