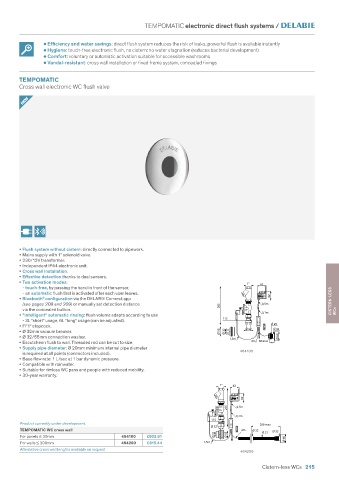

TEMPOMATIC electronic direct flush systems /

• Efficiency and water savings: direct flush system reduces the risk of leaks, powerful flush is available instantly
• Hygiene: touch-free electronic flush, no cistern: no water stagnation (reduces bacterial development)
• Comfort: voluntary or automatic activation suitable for accessible washrooms
• Vandal-resistant: cross wall installation or fixed frame system, concealed fixings

TEMPOMATIC
Cross wall electronic WC flush valve

NEW

• Flush system without cistern: directly connected to pipework.
• Mains supply with 1" solenoid valve.
• 230/12V transformer.
• Independent IP44 electronic unit.
• Cross wall installation.
• Effective detection thanks to dual sensors.
• Two activation modes: 1" 62
- touch-free, by passing the hand in front of the sensor,
- an automatic flush that is activated after each user leaves.
• Bluetooth configuration via the DELABIE Connect app 62 CISTERN-LESS
®
(see pages 208 and 209) or manually set detection distance 265 0,5m
via the concealed button.
0,1m WCs
• "Intelligent" automatic rinsing: flush volume adapts according to use
- 3L "short" usage, 6L "long" usage (can be adjusted). 115
• FF1" stopcock. Ø 29
• Ø 32mm vacuum breaker. Ø 55 Ø 32 Ø 32 Ø 32
• Ø 32/55mm connection washer. Ø 60
1,5m
• Escutcheon flush to wall. Threaded rod can be cut to size. 4m 30 max
• Supply pipe diameter: Ø 20mm minimum internal pipe diameter
is required at all points (connectors included). 464100
• Base flow rate: 1 L/sec at 1 bar dynamic pressure.
• Compatible with rainwater.
• Suitable for rimless WC pans and people with reduced mobility.
• 30-year warranty.
1" 62

62
265 0,5m
0,1m
115
Product currently under development. 200 max
Ø 32
TEMPOMATIC WC cross wall 4m Ø 32 Ø 21 Ø 32
For panels ≤ 30mm 464100 £803.61 Ø 32 Ø 55 Ø 60
For walls ≤ 200mm 464200 £815.44 1,5m
Alternative cross wall lengths available on request
464200
