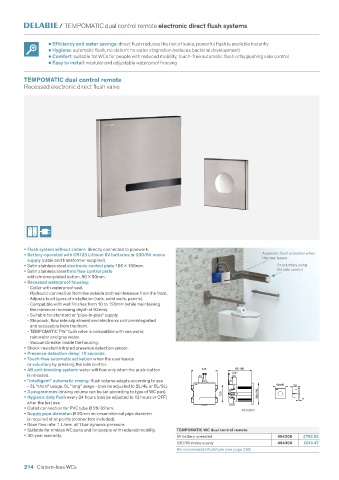

Page 216 - water-controls-for-public-and-commercial-places

/ TEMPOMATIC dual control remote electronic direct flush systems

• Efficiency and water savings: direct flush reduces the risk of leaks, powerful flush is available instantly
• Hygiene: automatic flush, no cistern: no water stagnation (reduces bacterial development)
• Comfort: suitable for WCs for people with reduced mobility, touch-free automatic flush or by pushing side control
• Easy to install: modular and adjustable waterproof housing

TEMPOMATIC dual control remote
Recessed electronic direct flush valve

• Flush system without cistern: directly connected to pipework.
Automatic flush activation when
• Battery-operated with CR123 Lithium 6V batteries or 230/6V mains
the user leaves
supply (cable and transformer supplied).
• Satin stainless steel electronic control plate 186 186mm. Or voluntary using
• Satin stainless steel time flow control plate the side control
with chrome-plated button, 90 90mm.
• Recessed waterproof housing:
- Collar with waterproof seal.
- Hydraulic connection from the outside and maintenance from the front.
- Adjusts to all types of installation (rails, solid walls, panels).
- Compatible with wall finishes from 10 to 120mm (while maintaining
the minimum recessing depth of 93mm).
- Suitable for standard or "pipe-in-pipe" supply.
- Stopcock, flow rate adjustment and electronic unit are integrated
and accessible from the front.
- TEMPOMATIC F¾" flush valve is compatible with sea water,
rain water and grey water.
- Vacuum breaker inside the housing.
• Shock-resistant infrared presence detection sensor.
• Presence detection delay: 10 seconds.
• Touch-free automatic activation when the user leaves
or voluntary by pressing the side control.
• AB anti-blocking system: water will flow only when the push-button 225 93-190
3/4"
is released.
• "Intelligent" automatic rinsing: flush volume adapts according to use
- 3L "short" usage, 6L "long" usage - (can be adjusted to 2L/4L or 5L/9L). 90x90 50
• 3 programmes (rinsing volume can be set according to type of WC pan). 150
• Hygienic duty flush every 24 hours (can be adjusted to 12 hours or OFF) 186x186 11
after the last use.
• Outlet connection for PVC tube Ø 26/32mm.
464300
• Supply pipe diameter: Ø 20mm minimum internal pipe diameter
is required at all points (connectors included).
• Base flow rate: 1 L/sec. at 1 bar dynamic pressure.
• Suitable for rimless WC pans and for people with reduced mobility. TEMPOMATIC WC dual control remote
• 30-year warranty. 6V battery-operated 464306 £782.02
230/6V mains supply 464300 £810.47
We recommend a flush tube (see page 232)

214 Cistern-less WCs
