P. 226

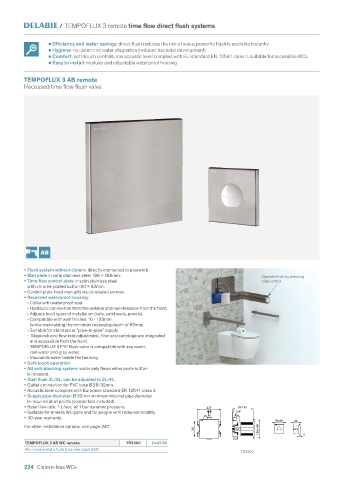

/ TEMPOFLUX 3 remote time flow direct flush systems


                  •  Efficiency and water savings: direct flush reduces the risk of leaks, powerful flush is available instantly
                  •  Hygiene: no cistern: no water stagnation (reduces bacterial development)
                  •  Comfort: soft-touch controls, low acoustic level complies with EU standard EN 12541 class II, suitable for accessible WCs
                  •  Easy to install: modular and adjustable waterproof housing


          TEMPOFLUX 3 AB remote
          Recessed time flow flush valve







































          • Flush system without cistern: directly connected to pipework.
          • Wall plate in satin stainless steel 186   186mm.                                 Operate flush by pressing
          • Time flow control plate in satin stainless steel                                  side control
           with chrome-plated button 90   90mm.
          • Control plate fixed manually via concealed screws.
          • Recessed waterproof housing:
           - Collar with waterproof seal.
           - Hydraulic connection from the outside and maintenance from the front.
           - Adjusts to all types of installation (rails, solid walls, panels).
           - Compatible with wall finishes 10 - 120mm
              (while maintaining the minimum recessing depth of 93mm).
           - Suitable for standard or "pipe-in-pipe" supply.
           -  Stopcock and flow rate adjustment, filter and cartridge are integrated
              and accessible from the front.
           - TEMPOFLUX 3 F¾" flush valve is compatible with sea water,
              rain water and grey water.
           - Vacuum breaker inside the housing.
          • Soft-touch operation.
          • AB anti-blocking system: water only flows when push-button
           is released.
          • Dual flush 3L/6L, can be adjusted to 2L/4L.
          • Outlet connection for PVC tube Ø 26/32mm.
          • Acoustic level complies with European standard EN 12541 class II.
          • Supply pipe diameter: Ø 20mm minimum internal pipe diameter
           is required at all points (connectors included).
          • Base flow rate: 1 L/sec. at 1 bar dynamic pressure.            225        93-190
          • Suitable for rimless WC pans and for people with reduced mobility.      3/4"
          • 30-year warranty.
                                                                                                  90x90  50
          For other installation options: see page 247.
                                                                     150                    186x186        11

          TEMPOFLUX 3 AB WC remote           763300   £447.89
          We recommend a flush tube (see page 232)
                                                                                      763300

          224 Cistern-less WCs
