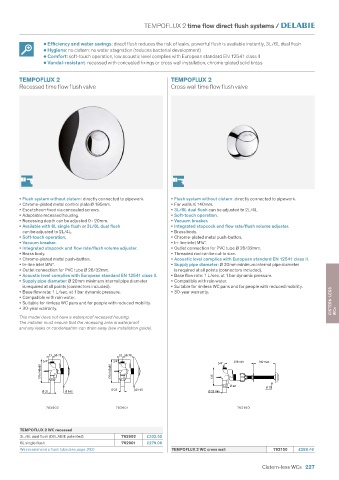

Page 229 - water-controls-for-public-and-commercial-places

TEMPOFLUX 2 time flow direct flush systems /

• Efficiency and water savings: direct flush reduces the risk of leaks, powerful flush is available instantly, 3L/6L dual flush
• Hygiene: no cistern: no water stagnation (reduces bacterial development)
• Comfort: soft-touch operation, low acoustic level complies with European standard EN 12541 class II
• Vandal-resistant: recessed with concealed fixings or cross wall installation, chrome-plated solid brass

TEMPOFLUX 2 TEMPOFLUX 2
Recessed time flow flush valve Cross wall time flow flush valve

• Flush system without cistern: directly connected to pipework. • Flush system without cistern: directly connected to pipework.
• Chrome-plated metal control plate Ø 195mm. • For walls ≤ 140mm.
• Escutcheon fixed via concealed screws. • 3L/6L dual flush can be adjusted to 2L/4L.
• Adaptable recessed housing. • Soft-touch operation.
• Recessing depth can be adjusted 0 - 20mm. • Vacuum breaker.
• Available with 6L single flush or 3L/6L dual flush • Integrated stopcock and flow rate/flush volume adjuster.
can be adjusted to 2L/4L. • Brass body.
• Soft-touch operation. • Chrome-plated metal push-button.
• Vacuum breaker. • In-line inlet M¾".
• Integrated stopcock and flow rate/flush volume adjuster. • Outlet connection for PVC tube Ø 26/32mm.
• Brass body. • Threaded rod can be cut to size.
• Chrome-plated metal push-button. • Acoustic level complies with European standard EN 12541 class II.
• In-line inlet M¾". • Supply pipe diameter: Ø 20mm minimum internal pipe diameter
• Outlet connection for PVC tube Ø 26/32mm. is required at all points (connectors included).
• Acoustic level complies with European standard EN 12541 class II. • Base flow rate: 1 L/sec. at 1 bar dynamic pressure.
• Supply pipe diameter: Ø 20mm minimum internal pipe diameter • Compatible with rain water.
is required at all points (connectors included). • Suitable for rimless WC pans and for people with reduced mobility.
• Base flow rate: 1 L/sec. at 1 bar dynamic pressure. • 30-year warranty.
• Compatible with rain water.
• Suitable for rimless WC pans and for people with reduced mobility. CISTERN-LESS
• 30-year warranty. WCs
This model does not have a waterproof recessed housing.
The installer must ensure that the recessing area is waterproof
and any leaks or condensation can drain away (see installation guide).

33 58-78 33 58-78
3/4" 3/4" 3/4" 208 min 140 max
170x145x80 170x145x80 125

Ø 28 Ø 70
Ø 25 Ø 195
Ø 25 Ø 195 Ø 25 min

762902 762901 762150

TEMPOFLUX 2 WC recessed
3L/6L dual flush (DELABIE patented) 762902 £302.52
6L single flush 762901 £279.06
We recommend a flush tube (see page 232) TEMPOFLUX 2 WC cross wall 762150 £288.48

Cistern-less WCs 227
