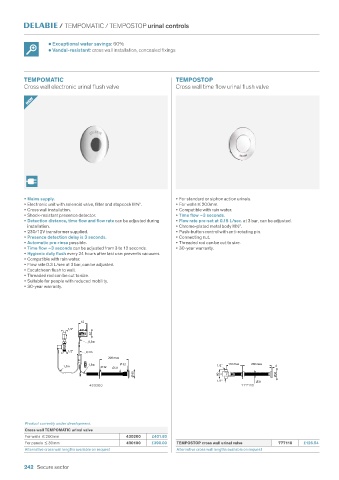

Page 244 - water-controls-for-public-and-commercial-places

/ TEMPOMATIC / TEMPOSTOP urinal controls

• Exceptional water savings: 60%
• Vandal-resistant: cross wall installation, concealed fixings

TEMPOMATIC TEMPOSTOP
Cross wall electronic urinal flush valve Cross wall time flow urinal flush valve

NEW

• Mains supply. • For standard or siphon action urinals.
• Electronic unit with solenoid valve, filter and stopcock M½". • For walls ≤ 200mm.
• Cross wall installation. • Compatible with rain water.
• Shock-resistant presence detector. • Time flow ~3 seconds.
• Detection distance, time flow and flow rate can be adjusted during • Flow rate pre-set at 0.15 L/sec. at 3 bar, can be adjusted.
installation. • Chrome-plated metal body M½".
• 230/12V transformer supplied. • Push-button control with anti-rotating pin.
• Presence detection delay is 3 seconds. • Connecting nut.
• Automatic pre-rinse possible. • Threaded rod can be cut to size.
• Time flow ~3 seconds can be adjusted from 3 to 12 seconds. • 30-year warranty.
• Hygienic duty flush every 24 hours after last use: prevents vacuums.
• Compatible with rain water.
• Flow rate 0.3 L/sec at 3 bar, can be adjusted.
• Escutcheon flush to wall.
• Threaded rod can be cut to size.
• Suitable for people with reduced mobility.
• 30-year warranty.

62
1/2"
62
0,5m
1/2" 0,1m
200 max
1,5m Ø 32 110 max 200 max
1,5m Ø 32 Ø 21 1/2" 4
Ø 60 60 Ø50
1/2" Ø21
430200 777110

Product currently under development.
Cross wall TEMPOMATIC urinal valve
For walls ≤ 200mm 430200 £401.80
For panels ≤ 30mm 430100 £390.00 TEMPOSTOP cross wall urinal valve 777110 £126.54
Alternative cross wall lengths available on request Alternative cross wall lengths available on request

242 Secure sector
