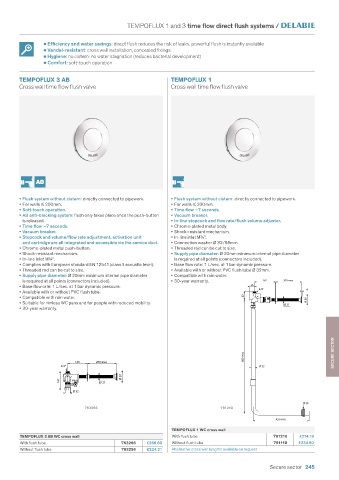

TEMPOFLUX 1 and 3 time flow direct flush systems /


                •  Efficiency and water savings: direct flush reduces the risk of leaks, powerful flush is instantly available
                •  Vandal-resistant: cross wall installation, concealed fixings
                •  Hygiene: no cistern: no water stagnation (reduces bacterial development)
                •  Comfort: soft-touch operation


        TEMPOFLUX 3 AB                                       TEMPOFLUX 1
        Cross wall time flow flush valve                       Cross wall time flow flush valve























        • Flush system without cistern: directly connected to pipework.  • Flush system without cistern: directly connected to pipework.
        • For walls ≤ 200mm.                                 • For walls ≤ 200mm.
        • Soft-touch operation.                              • Time flow ~7 seconds.
        • AB anti-blocking system: flush only takes place once the push-button   • Vacuum breaker.
         is released.                                        • In-line stopcock and flow rate/flush volume adjuster.
        • Time flow ~7 seconds.                               • Chrome-plated metal body.
        • Vacuum breaker.                                    • Shock-resistant mechanism.
        • Stopcock and volume/flow rate adjustment, activation unit    • In-line inlet M¾".
         and cartridge are all integrated and accessible via the service duct.  • Connection washer Ø 32/55mm.
        • Chrome-plated metal push-button.                   • Threaded rod can be cut to size.
        • Shock-resistant mechanism.                         • Supply pipe diameter: Ø 20mm minimum internal pipe diameter
        • In-line inlet M¾".                                  is required at all points (connectors included).
        • Complies with European standard EN 12541 (class II acoustic level).  • Base flow rate: 1 L/sec. at 1 bar dynamic pressure.
        • Threaded rod can be cut to size.                   • Available with or without PVC flush tube Ø 32mm.
        • Supply pipe diameter: Ø 20mm minimum internal pipe diameter    • Compatible with rain water.
         is required at all points (connectors included).    • 30-year warranty.             162     200 max
        • Base flow rate: 1 L/sec. at 1 bar dynamic pressure.                             36
        • Available with or without PVC flush tube.                                          3/4"             4
        • Compatible with rain water.                                                  63                    Ø 50
        • Suitable for rimless WC pans and for people with reduced mobility.                          Ø 21
        • 30-year warranty.





                                                                                                                      SECURE SECTOR

                                                                                       880 max
                           136     200 max
                      3/4"                                                                  Ø 32
                                            Ø 50
                      147            Ø 21

                           Ø 32
                                                                                                           Ø 55
                               763256                                         761210

                                                                                                  435 max
                                                             TEMPOFLUX 1 WC cross wall
        TEMPOFLUX 3 AB WC cross wall                         With flush tube                      761210   £274.19
        With flush tube                      763266   £266.60  Without flush tube                  761110   £234.60
        Without flush tube                   763256   £224.21  Alternative cross wall lengths available on request


                                                                                                Secure sector    245
