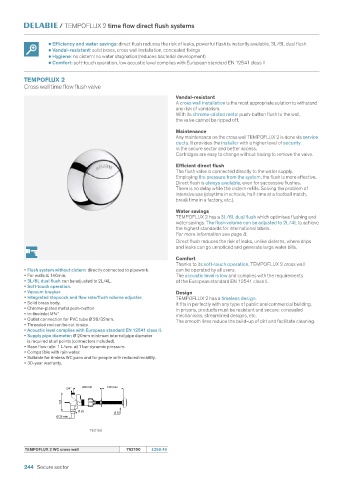

Page 246 - water-controls-for-public-and-commercial-places

/ TEMPOFLUX 2 time flow direct flush systems

• Efficiency and water savings: direct flush reduces the risk of leaks, powerful flush is instantly available, 3L/6L dual flush
• Vandal-resistant: solid brass, cross wall installation, concealed fixings
• Hygiene: no cistern: no water stagnation (reduces bacterial development)
• Comfort: soft-touch operation, low acoustic level complies with European standard EN 12541 class II

TEMPOFLUX 2
Cross wall time flow flush valve

Vandal-resistant
A cross wall installation is the most appropriate solution to withstand
any risk of vandalism.
With its chrome-plated metal push-button flush to the wall,
the valve cannot be ripped off.
Maintenance
Any maintenance on the cross wall TEMPOFLUX 2 is done via service
ducts. It provides the installer with a higher level of security
in the secure sector and better access.
Cartridges are easy to change without having to remove the valve.

Efficient direct flush
The flush valve is connected directly to the water supply.
Employing the pressure from the system, the flush is more effective.
Direct flush is always available, even for successive flushes.
There is no delay while the cistern refills. Solving the problem of
intensive use (playtime in schools, half-time at a football match,
break time in a factory, etc.).

Water savings
TEMPOFLUX 2 has a 3L/6L dual flush which optimises flushing and
water savings. The flush volume can be adjusted to 2L/4L to achieve
the highest standards for international labels.
For more information see page 8.
Direct flush reduces the risk of leaks, unlike cisterns, where drips
and leaks can go unnoticed and generate large water bills.
Comfort
Thanks to its soft-touch operation, TEMPOFLUX 2 cross wall
• Flush system without cistern: directly connected to pipework. can be operated by all users.
• For walls ≤ 140mm. The acoustic level is low and complies with the requirements
• 3L/6L dual flush can be adjusted to 2L/4L. of the European standard EN 12541 class II.
• Soft-touch operation.
• Vacuum breaker. Design
• Integrated stopcock and flow rate/flush volume adjuster. TEMPOFLUX 2 has a timeless design.
• Solid brass body. It fits in perfectly with any type of public and commercial building.
• Chrome-plated metal push-button. In prisons, products must be resistant and secure: concealed
• In-line inlet M¾". mechanisms, streamlined designs, etc.
• Outlet connection for PVC tube Ø 26/32mm. The smooth lines reduce the build-up of dirt and facilitate cleaning.
• Threaded rod can be cut to size.
• Acoustic level complies with European standard EN 12541 class II.
• Supply pipe diameter: Ø 20mm minimum internal pipe diameter
is required at all points (connectors included).
• Base flow rate: 1 L/sec. at 1 bar dynamic pressure.
• Compatible with rain water.
• Suitable for rimless WC pans and for people with reduced mobility.
• 30-year warranty.

208 min 140 max
3/4"
125
Ø 28
Ø 70
Ø 25 min
762150

TEMPOFLUX 2 WC cross wall 762150 £288.48

244 Secure sector
