Page 249 - water-controls-for-public-and-commercial-places
P. 249

TEMPOFLUX 3 remote time flow direct flush systems /


                •  Efficiency and water savings: direct flush reduces the risk of leaks, powerful flush is instantly available
                •  Hygiene: no cistern: no water stagnation (reduces bacterial development)
                •  Comfort: soft-touch controls, low acoustic level complies with EU standard EN 12541 class II, suitable for accessible WCs
                •  Easy to install: modular and adjustable waterproof housing

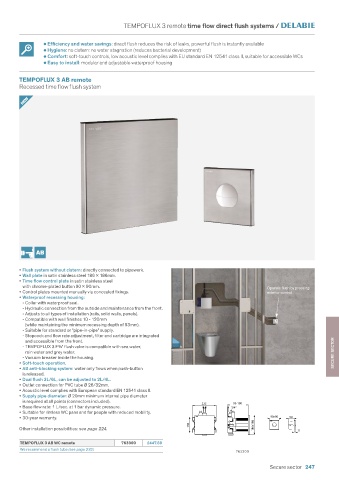

        TEMPOFLUX 3 AB remote
        Recessed time flow flush system

         NEW




































        • Flush system without cistern: directly connected to pipework.
        • Wall plate in satin stainless steel 186   186mm.
        • Time flow control plate in satin stainless steel
         with chrome-plated button 90   90mm.                                                  Operate flush by pressing
        • Control plates mounted manually via concealed fixings.                                exterior control
        • Waterproof recessing housing:
         - Collar with waterproof seal.
         - Hydraulic connection from the outside and maintenance from the front.
         - Adjusts to all types of installation (rails, solid walls, panels).
         - Compatible with wall finishes 10 - 120mm
            (while maintaining the minimum recessing depth of 93mm).
         - Suitable for standard or "pipe-in-pipe" supply.
         - Stopcock and flow rate adjustment, filter and cartridge are integrated
            and accessible from the front.
         - TEMPOFLUX 3 F¾" flush valve is compatible with sea water,
            rain water and grey water.                                                                                SECURE SECTOR
         - Vacuum breaker inside the housing.
        • Soft-touch operation.
        • AB anti-blocking system: water only flows when push-button
         is released.
        • Dual flush 3L/6L, can be adjusted to 2L/4L.
        • Outlet connection for PVC tube Ø 26/32mm.
        • Acoustic level complies with European standard EN 12541 class II.
        • Supply pipe diameter: Ø 20mm minimum internal pipe diameter
         is required at all points (connectors included).
                                                                        225        93-190
        • Base flow rate: 1 L/sec. at 1 bar dynamic pressure.                      3/4"
        • Suitable for rimless WC pans and for people with reduced mobility.
        • 30-year warranty.                                                                     90x90  50
                                                                   150                    186x186
        Other installation possibilities: see page 224.                                                   11

        TEMPOFLUX 3 AB WC remote            763300   £447.89
        We recommend a flush tube (see page 232)
                                                                                    763300

                                                                                                Secure sector    247
