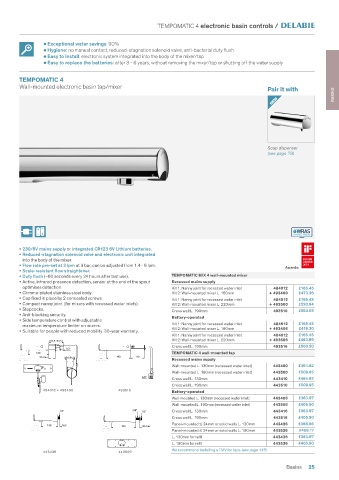

Page 27 - Water_Controls_for_Public-Commercial

TEMPOMATIC 4 electronic basin controls /

• Exceptional water savings: 90%
• Hygiene: no manual contact, reduced-stagnation solenoid valve, anti-bacterial duty flush
• Easy to install: electronic system integrated into the body of the mixer/tap
• Easy to replace the batteries: after 3 - 6 years, without removing the mixer/tap or shutting off the water supply

TEMPOMATIC 4
Wall-mounted electronic basin tap/mixer Pair it with

NEW BASINS

Soap dispenser
(see page 79)

• 230/6V mains supply or integrated CR123 6V Lithium batteries.
• Reduced-stagnation solenoid valve and electronic unit integrated
into the body of the mixer.
• Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Awards:
• Scale-resistant flow straightener.
• Duty flush (~60 seconds every 24 hours after last use). TEMPOMATIC MIX 4 wall-mounted mixer
• Active, infrared presence detection, sensor at the end of the spout Recessed mains supply
optimises detection. Kit 1: Nanny joint for recessed water inlet 484012 £165.45
• Chrome-plated stainless steel body. Kit 2: Wall-mounted mixer L. 160mm + 493400 £473.36
• Cap fixed in place by 2 concealed screws. Kit 1: Nanny joint for recessed water inlet 484012 £165.45
• Compact nanny joint (for mixers with recessed water inlets). Kit 2: Wall-mounted mixer L. 220mm + 493500 £520.94
• Stopcocks. Cross wall L. 190mm 493510 £554.55
• Anti-blocking security. Battery-operated
• Side temperature control with adjustable
484612
maximum temperature limiter on mixers. Kit 1: Nanny joint for recessed water inlet + 493406 £165.45
Kit 2: Wall-mounted mixer L. 160mm
£416.30
• Suitable for people with reduced mobility. 30-year warranty.
Kit 1: Nanny joint for recessed water inlet 484612 £165.45
Kit 2: Wall-mounted mixer L. 220mm + 493506 £463.89
[81,5 ; 83,5]
Cross wall L. 190mm 493516 £500.50
1/2"
160 TEMPOMATIC 4 wall-mounted tap
34 max 50x50x25 190 110
Recessed mains supply
Wall-mounted L. 130mm (recessed water inlet) 443400 £464.82
Wall-mounted L. 190mm (recessed water inlet) 443500 £509.95
3/8"
Cross wall L. 130mm 443410 £464.82
Cross wall L. 190mm 443510 £509.95
484012 + 493400 493516 Battery-operated
Wall-mounted L. 130mm (recessed water inlet) 443406 £363.97
Wall-mounted L. 190mm (recessed water inlet) 443506 £405.50
1/2" 3/8" 1/2" Cross wall L. 130mm 443416 £363.97
Cross wall L. 190mm 443516 £405.50
Panel-mounted ≤ 24mm or solid walls L. 130mm 443426 £368.86
130 16,5
190 30 max
Panel-mounted ≤ 24mm or solid walls L. 190mm 443526 £409.17
L. 130mm for refit 443436 £363.97
L. 190mm for refit 443536 £405.50
We recommend installing a TMV for taps (see page 143)
443436 443506
Basins 25
