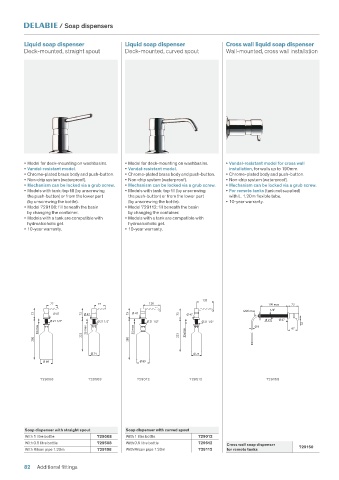

P. 84

/ Soap dispensers


          Liquid soap dispenser              Liquid soap dispenser              Cross wall liquid soap dispenser
          Deck-mounted, straight spout       Deck-mounted, curved spout         Wall-mounted, cross wall installation






















          • Model for deck-mounting on washbasins.  • Model for deck-mounting on washbasins.  • Vandal-resistant model for cross wall
          • Vandal-resistant model.          • Vandal-resistant model.            installation, for walls up to 190mm.
          • Chrome-plated brass body and push-button.  • Chrome-plated brass body and push-button.  • Chrome-plated body and push-button.
          • Non-drip system (waterproof).    • Non-drip system (waterproof).    • Non-drip system (waterproof).
          • Mechanism can be locked via a grub screw.  • Mechanism can be locked via a grub screw.  • Mechanism can be locked via a grub screw.
          • Models with tank: top fill (by unscrewing    • Models with tank: top fill (by unscrewing    • For remote tanks (tank not supplied)
           the push-button) or from the lower part    the push-button) or from the lower part    with L. 1.20m flexible tube.
           (by unscrewing the bottle).        (by unscrewing the bottle).       • 10-year warranty.
          • Model 729108: fill beneath the basin    • Model 729112: fill beneath the basin
           by changing the container.         by changing the container.
          • Models with a tank are compatible with   • Models with a tank are compatible with
           hydroalcoholic gel.                hydroalcoholic gel.
          • 10-year warranty.                • 10-year warranty.














                                                                        120
                   77              77                120                                       190 max  73
                                                                                      1200 max  1/2"
             73     Ø 47      73  Ø 47        73  Ø 47          73  Ø 47
                   Ø 21 1/2"       Ø 21 1/2"         Ø 21 1/2"          Ø 21 1/2"              Ø 21   Ø 47
                                                                                                           32
              35 max           35 max           35 max            35 max                  Ø 9          67
             280              223             280               223

                                 Ø 74                                Ø 74
                Ø 89                              Ø 89


               729008           729508           729012             729512                     729150









          Soap dispenser with straight spout  Soap dispenser with curved spout
          With 1 litre bottle      729008    With 1 litre bottle       729012
          With 0.5 litre bottle    729508    With 0.5 litre bottle     729512    Cross wall soap dispenser
          With Rilsan pipe 1.20m   729108    With Rilsan pipe 1.20m    729112    for remote tanks         729150


          82  Additional fittings
