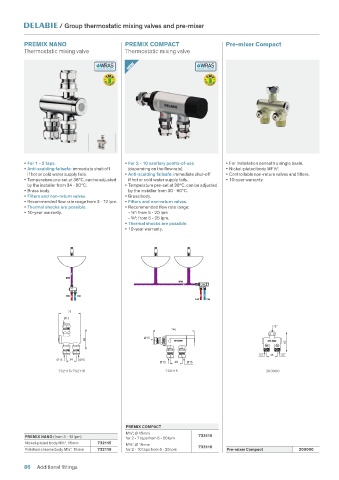

/ Group thermostatic mixing valves and pre-mixer


          PREMIX NANO                        PREMIX COMPACT                     Pre-mixer Compact
          Thermostatic mixing valve          Thermostatic mixing valve

                                              NEW



















          • For 1 - 2 taps.                  • For 2 - 10 sanitary points-of-use    • For installation beneath a single basin.
          • Anti-scalding failsafe: immediate shut-off    (depending on the flow rate).  • Nickel-plated body MF½".
           if hot or cold water supply fails.  • Anti-scalding failsafe: immediate shut-off   • Controllable non-return valves and filters.
          • Temperature pre-set at 38°C, can be adjusted   if hot or cold water supply fails.  • 10-year warranty.
           by the installer from 34 - 60°C.  • Temperature pre-set at 38°C, can be adjusted
          • Brass body.                       by the installer from 30 - 60°C.
          • Filters and non-return valves.   • Brass body.
          • Recommended flow rate range from 3 - 12 lpm.  • Filters and non-return valves.
          • Thermal shocks are possible.     • Recommended flow rate range:
          • 10-year warranty.                 - ½": from 5 - 20 lpm
                                              - ¾": from 5 - 25 lpm.
                                             • Thermal shocks are possible.
                                             • 10-year warranty.









                        MW
                                                                MW

                        HW  CW
                                                                      HW       CW
                         75
                       Ø15
                                                                                                 1/2"
                                                             140
                                                    Ø15
                               68
                                                                                                     65
                                                                                            1/2"   35   1/2"
                     Ø 15   34   Ø15
                                                         Ø15     40  Ø15
                      732115/732116                        733115                             200000










                                             PREMIX COMPACT
                                             M½", Ø 15mm
          PREMIX NANO (from 3 - 12 lpm)      for 2 - 7 taps from 5 - 20 lpm  733115
          Nickel-plated body M½", 15mm  732115  M¾", Ø 15mm
          Polished chrome body M½", 15mm  732116  for 2 - 10 taps from 5 - 25 lpm  733116  Pre-mixer Compact  200000


          86  Additional fittings
