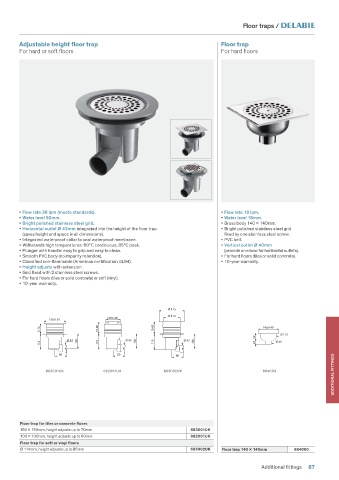

Floor traps /


        Adjustable height floor trap                                            Floor trap
        For hard or soft floors                                                 For hard floors

































        • Flow rate 36 lpm (meets standards).                                  • Flow rate 18 lpm.
        • Water level 50mm.                                                    • Water level 18mm.
        • Bright polished stainless steel grid.                                • Brass body 140   140mm.
        • Horizontal outlet Ø 43mm integrated into the height of the floor trap   • Bright polished stainless steel grid
         (saves height and space in all dimensions).                            fixed by one stainless steel screw.
        • Integrated waterproof collar to seal waterproof membrane.            • PVC bell.
        • Withstands high temperatures: 60°C continuous, 85°C peak.            • Vertical outlet Ø 40mm
        • Plunger with handle: easy to grip and easy to clean.                  (provide an elbow for horizontal outlets).
        • Smooth PVC body (no impurity retention).                             • For hard floors (tiles or solid concrete).
        • Classified non-flammable (American certification UL94).                 • 10-year warranty.
        • Height adjusts with extension.
        • Grid fixed with 2 stainless steel screws.
        • For hard floors (tiles or solid concrete) or soft (vinyl).
        • 10-year warranty.




                                                            Ø 175
                                                            Ø 114
                                       100x100
                  150x150
               5-70                15-80               10-85                                 140x140
                                                                                                   Ø 110
                                                                                           52
                         Ø 43  100           Ø 43  100  110       Ø 43  100                       Ø 40
               110                 110                                                     23
                                                                                                                      ADDITIONAL FITTINGS
                      80                  80                   80
                 683001UK            682001UK              683002UK                          684000









        Floor trap for tiles or concrete floors
        150   150mm, height adjusts up to 70mm                      683001UK
        100   100mm, height adjusts up to 80mm                      682001UK
        Floor trap for soft or vinyl floors
        Ø 114mm, height adjusts up to 85mm                          683002UK   Floor trap 140   140mm   684000
