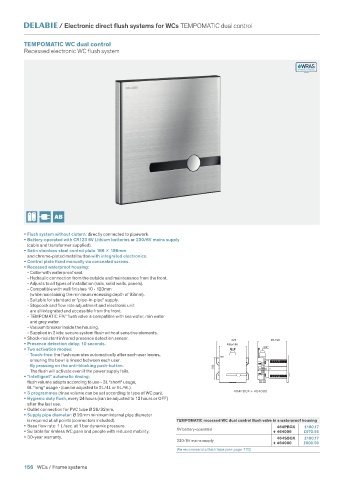

Page 158 - Water_Controls_for_Healthcare

/ Electronic direct flush systems for WCs TEMPOMATIC dual control

TEMPOMATIC WC dual control
Recessed electronic WC flush system

• Flush system without cistern: directly connected to pipework.
• Battery-operated with CR123 6V Lithium batteries or 230/6V mains supply
(cable and transformer supplied).
• Satin stainless steel control plate 186 186mm
and chrome-plated metal button with integrated electronics.
• Control plate fixed manually via concealed screws.
• Recessed waterproof housing:
- Collar with waterproof seal.
- Hydraulic connection from the outside and maintenance from the front.
- Adjusts to all types of installation (rails, solid walls, panels).
- Compatible with wall finishes 10 - 120mm
(while maintaining the minimum recessing depth of 93mm).
- Suitable for standard or "pipe-in-pipe" supply.
- Stopcock and flow rate adjustment and electronic unit
are all integrated and accessible from the front.
- TEMPOMATIC F¾" flush valve is compatible with sea water, rain water
and grey water.
- Vacuum breaker inside the housing.
- Supplied in 2 kits: secure system flush without sensitive elements.
• Shock-resistant infrared presence detection sensor. 225 93-190
• Presence detection delay: 10 seconds. 186x186
• Two activation modes: 3/4"
- Touch-free: the flush operates automatically after each user leaves,
ensuring the bowl is rinsed between each user.
- By pressing on the anti-blocking push-button. 150
The flush will activate even if the power supply fails.
• "Intelligent" automatic rinsing:
flush volume adapts according to use - 3L "short" usage,
6L "long" usage - (can be adjusted to 2L/4L or 5L/9L).
• 3 programmes (rinse volume can be set according to type of WC pan). 464PBOX + 464006
• Hygienic duty flush, every 24 hours (can be adjusted to 12 hours or OFF)
after the last use.
• Outlet connection for PVC tube Ø 26/32mm.
• Supply pipe diameter: Ø 20mm minimum internal pipe diameter
is required at all points (connectors included). TEMPOMATIC recessed WC dual control flush valve in a waterproof housing
• Base flow rate: 1 L/sec. at 1 bar dynamic pressure. 464PBOX £180.17
• Suitable for rimless WC pans and people with reduced mobility. 6V battery-operated + 464006 £570.55
• 30-year warranty. 464SBOX £180.17
230/6V mains supply
+ 464000 £600.59
We recommend a flush tube (see page 170)

156 WCs / Frame systems
