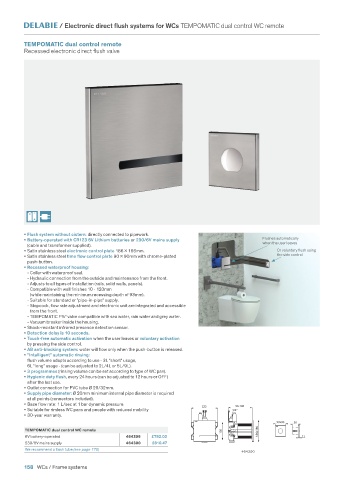

/ Electronic direct flush systems for WCs TEMPOMATIC dual control WC remote


              TEMPOMATIC dual control remote
              Recessed electronic direct flush valve







































              • Flush system without cistern: directly connected to pipework.
              • Battery-operated with CR123 6V Lithium batteries or 230/6V mains supply          Flushes automatically
                                                                                                 when the user leaves
               (cable and transformer supplied).
              • Satin stainless steel electronic control plate 186   186mm.                           Or voluntary flush using
              • Satin stainless steel time flow control plate 90   90mm with chrome-plated             the side control
               push-button.
              • Recessed waterproof housing:
               - Collar with waterproof seal.
               - Hydraulic connection from the outside and maintenance from the front.
               - Adjusts to all types of installation (rails, solid walls, panels).
               - Compatible with wall finishes 10 - 120mm
                  (while maintaining the minimum recessing depth of 93mm).
               - Suitable for standard or "pipe-in-pipe" supply.
               - Stopcock, flow rate adjustment and electronic unit are integrated and accessible
                  from the front.
               - TEMPOMATIC F¾" valve compatible with sea water, rain water and grey water.
               - Vacuum breaker inside the housing.
              • Shock-resistant infrared presence detection sensor.
              • Detection delay is 10 seconds.
              • Touch-free automatic activation when the user leaves or voluntary activation
               by pressing the side control.
              • AB anti-blocking system: water will flow only when the push-button is released.
              • "Intelligent" automatic rinsing:
               flush volume adapts according to use - 3L "short" usage,
               6L "long" usage - (can be adjusted to 2L/4L or 5L/9L).
              • 3 programmes (rinsing volume can be set according to type of WC pan).
              • Hygienic duty flush, every 24 hours (can be adjusted to 12 hours or OFF)
               after the last use.
              • Outlet connection for PVC tube Ø 26/32mm.
              • Supply pipe diameter: Ø 20mm minimum internal pipe diameter is required
               at all points (connectors included).
              • Base flow rate: 1 L/sec at 1 bar dynamic pressure.
                                                                            225         93-190
              • Suitable for rimless WC pans and people with reduced mobility          3/4"
              • 30-year warranty.
                                                                                                      90x90  50
              TEMPOMATIC dual control WC remote                                    150          186x186
              6V battery-operated                464306   £782.02                                              11
              230/6V mains supply                464300    £810.47
              We recommend a flush tube (see page 170)
                                                                                          464300
              158 WCs / Frame systems
