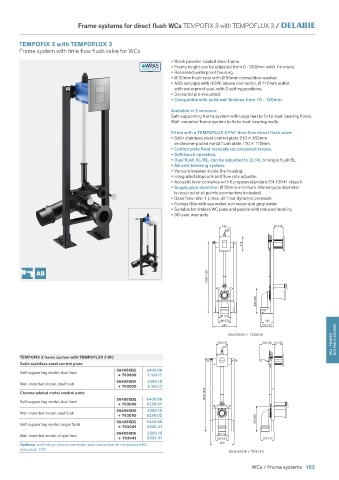

Frame systems for direct flush WCs TEMPOFIX 3 with TEMPOFLUX 3 /

TEMPOFIX 3 with TEMPOFLUX 3
Frame system with time flow flush valve for WCs

• Black powder-coated steel frame.
• Frame height can be adjusted from 0 - 200mm (with 1m mark).
• Recessed waterproof housing.
• Ø 32mm flush tube with Ø 55mm connection washer.
• ABS soil pipe with HDPE sleeve connector, Ø 110mm outlet
with waterproof seal, with 2 setting positions.
• Delivered pre-mounted.
• Compatible with solid wall finishes from 10 - 120mm.
Available in 2 versions:
Self-supporting frame system with large feet to fix to load-bearing floors.
Wall-mounted frame system to fix to load-bearing walls.
Fitted with a TEMPOFLUX 3 F¾" time flow direct flush valve:
• Satin stainless steel control plate 210 162mm
or chrome-plated metal flush plate 170 170mm.
• Control plate fixed manually via concealed screws.
• Soft-touch operation.
• Dual flush 3L/6L, can be adjusted to 2L/4L or single flush 6L.
• AB anti-blocking system.
• Vacuum breaker inside the housing.
• Integrated stopcock and flow rate adjuster.
• Acoustic level complies with European standard EN 12541 class II.
• Supply pipe diameter: Ø 20mm minimum internal pipe diameter
is required at all points (connectors included).
• Base flow rate: 1 L/sec. at 1 bar dynamic pressure.
• Compatible with sea water, rain water and grey water.
• Suitable for rimless WC pans and people with reduced mobility.
• 30-year warranty.

162 10-120
3/4"

210

1000-1320

300-620

Ø 110
180-230 165
350 157-177
564065DE + 763000
WCs - FRAMES
170x170 160-220 10-120 BED PAN CLEANERS
3/4"
TEMPOFIX 3 frame system with TEMPOFLUX 3 WC
Satin stainless steel control plate
564065DE £435.99
Self-supporting model, dual flush
+ 763000 £180.17
564060DE £390.10
Wall-mounted model, dual flush
+ 763000 £180.17
Chrome-plated metal control plate 1000-1320
564065DE £435.99
Self-supporting model, dual flush
+ 763040 £256.02
564060DE £390.10
Wall-mounted model, dual flush
+ 763040 £256.02
564065DE £435.99 300-620
Self-supporting model, single flush
+ 763041 £232.41
564060DE £390.10
Wall-mounted model, single flush Ø 110
+ 763041 £232.41 180-230 157-177
Options: wall fixings, sleeve connector and connection kit for disabled WC 350
(see page 170)
564060DE + 763040
