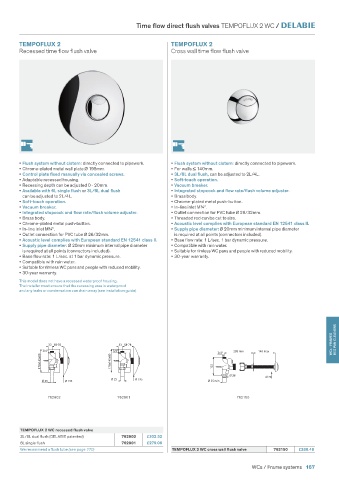

Time flow direct flush valves TEMPOFLUX 2 WC /


            TEMPOFLUX 2                                          TEMPOFLUX 2
            Recessed time flow flush valve                         Cross wall time flow flush valve























            • Flush system without cistern: directly connected to pipework.  • Flush system without cistern: directly connected to pipework.
            • Chrome-plated metal wall plate Ø 195mm.            • For walls ≤ 140mm.
            • Control plate fixed manually via concealed screws.  • 3L/6L dual flush, can be adjusted to 2L/4L.
            • Adaptable recessed housing.                        • Soft-touch operation.
            • Recessing depth can be adjusted 0 - 20mm.          • Vacuum breaker.
            • Available with 6L single flush or 3L/6L dual flush    • Integrated stopcock and flow rate/flush volume adjuster.
             can be adjusted to 2L/4L.                           • Brass body.
            • Soft-touch operation.                              • Chrome-plated metal push-button.
            • Vacuum breaker.                                    • In-line inlet M¾".
            • Integrated stopcock and flow rate/flush volume adjuster.  • Outlet connection for PVC tube Ø 26/32mm.
            • Brass body.                                        • Threaded rod can be cut to size.
            • Chrome-plated metal push-button.                   • Acoustic level complies with European standard EN 12541 class II.
            • In-line inlet M¾".                                 • Supply pipe diameter: Ø 20mm minimum internal pipe diameter
            • Outlet connection for PVC tube Ø 26/32mm.           is required at all points (connectors included).
            • Acoustic level complies with European standard EN 12541 class II.  • Base flow rate: 1 L/sec. 1 bar dynamic pressure.
            • Supply pipe diameter: Ø 20mm minimum internal pipe diameter    • Compatible with rain water.
             is required at all points (connectors included).    • Suitable for rimless WC pans and people with reduced mobility.
            • Base flow rate: 1 L/sec. at 1 bar dynamic pressure.   • 30-year warranty.
            • Compatible with rain water.
            • Suitable for rimless WC pans and people with reduced mobility.
            • 30-year warranty.
            This model does not have a recessed waterproof housing.
            The installer must ensure that the recessing area is waterproof
            and any leaks or condensation can drain away (see installation guide).










                      33 58-78                 33 58-78                                                                   WCs - FRAMES BED PAN CLEANERS
                    3/4"                     3/4"                                 3/4"  208 min  140 max
                   170x145x80               170x145x80                          125



                                                                                      Ø 28         Ø 70
                                            Ø 25     Ø 195
                    Ø 25    Ø 195                                             Ø 25 min
                      762902                  762901                                    762150





            TEMPOFLUX 2 WC recessed flush valve
            3L/6L dual flush (DELABIE patented)  762902   £302.52
            6L single flush                      762901   £279.06
            We recommend a flush tube (see page 170)               TEMPOFLUX 2 WC cross wall flush valve   762150  £288.48
