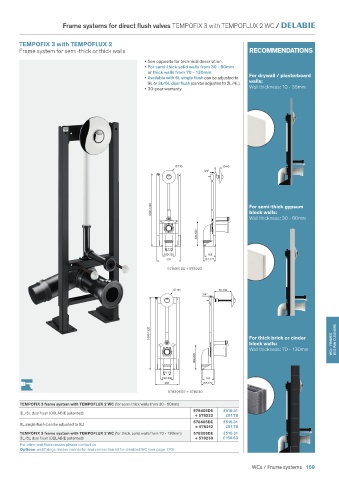

Frame systems for direct flush valves TEMPOFIX 3 with TEMPOFLUX 2 WC /

TEMPOFIX 3 with TEMPOFLUX 2
Frame system for semi-thick or thick walls RECOMMENDATIONS

• See opposite for technical description.
• For semi-thick solid walls from 30 - 60mm
or thick walls from 70 - 130mm.
• Available with 6L single flush can be adjusted to For drywall / plasterboard
walls:
9L or 3L/6L dual flush (can be adjusted to 2L/4L).
• 30-year warranty. Wall thickness: 10 - 35mm

Ø 195 30-60

3/4"

1000-1320 For semi-thick gypsum
block walls:
Wall thickness: 30 - 60mm

300-620

Ø 110
180-230 165
350 157-177
578405DE + 578222

Ø 195 70-130
3/4"

1000-1320 For thick brick or cinder

block walls: WCs - FRAMES BED PAN CLEANERS
Wall thickness: 70 - 130mm
300-620

Ø 110
180-230 165
350 157-177
578305DE + 578230

TEMPOFIX 3 frame system with TEMPOFLUX 2 WC (for semi-thick walls from 30 - 60mm)
578405DE £516.31
3L/6L dual flush (DELABIE patented)
+ 578222 £91.78
578405DE £516.31
6L single flush (can be adjusted to 9L)
+ 578212 £91.78
TEMPOFIX 3 frame system with TEMPOFLUX 2 WC (for thick, solid walls from 70 - 130mm) 578305DE £516.31
3L/6L dual flush (DELABIE patented) + 578230 £160.63
For other wall thicknesses please contact us
Options: wall fixings, sleeve connector and connection kit for disabled WC (see page 170)

WCs / Frame systems 169
