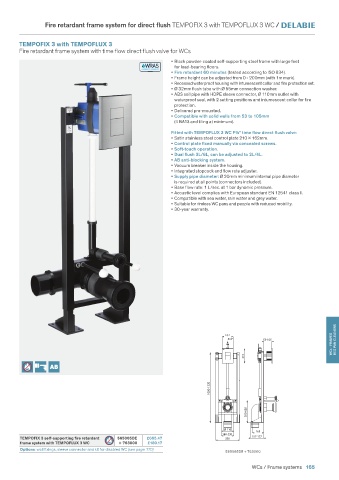

Fire retardant frame system for direct flush TEMPOFIX 3 with TEMPOFLUX 3 WC /
TEMPOFIX 3 with TEMPOFLUX 3
Fire retardant frame system with time flow direct flush valve for WCs
TEMPOFIX 3 self-supporting fire retardant
frame system with TEMPOFLUX 3 WC
Options: wall fixings, sleeve connector and kit for disabled WC (see page 170)
• Black powder-coated self-supporting steel frame with large feet
for load-bearing floors.
• Fire retardant 60 minutes (tested according to ISO 834).
• Frame height can be adjusted from 0 - 200mm (with 1m mark).
• Recessed waterproof housing with intumescent collar and fire protection set.
• Ø 32mm flush tube with Ø 55mm connection washer.
• ABS soil pipe with HDPE sleeve connector, Ø 110mm outlet with
waterproof seal, with 2 setting positions and intumescent collar for fire
protection.
• Delivered pre-mounted.
• Compatible with solid walls from 53 to 105mm
(4 BA13 and tiling at minimum).
Fitted with TEMPOFLUX 3 WC F¾" time flow direct flush valve:
• Satin stainless steel control plate 210 162mm.
• Control plate fixed manually via concealed screws.
• Soft-touch operation.
• Dual flush 3L/6L, can be adjusted to 2L/4L.
• AB anti-blocking system.
• Vacuum breaker inside the housing.
• Integrated stopcock and flow rate adjuster.
• Supply pipe diameter: Ø 20mm minimum internal pipe diameter
is required at all points (connectors included).
• Base flow rate: 1 L/sec. at 1 bar dynamic pressure.
• Acoustic level complies with European standard EN 12541 class II.
• Compatible with sea water, rain water and grey water.
• Suitable for rimless WC pans and people with reduced mobility.
• 30-year warranty.
WCs - FRAMES
162
3/4" 53-105 BED PAN CLEANERS
210
1000-1320
300-620
Ø 110
165
180-230
565065DE £665.47 350 157-177
+ 763000 £180.17
565065DE + 763000
WCs / Frame systems 165
