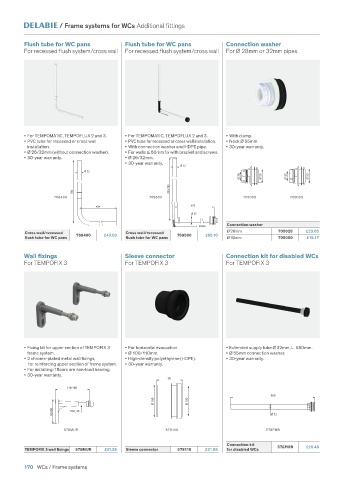

/ Frame systems for WCs Additional fittings

Flush tube for WC pans Flush tube for WC pans Connection washer
For recessed flush system/cross wall For recessed flush system/cross wall For Ø 28mm or 32mm pipes

• For TEMPOMATIC, TEMPOFLUX 2 and 3. • For TEMPOMATIC, TEMPOFLUX 2 and 3. • With clamp.
• PVC tube for recessed or cross wall • PVC tube for recessed or cross wall installation. • Neck Ø 55mm.
installation. • With connection washer and HDPE pipe. • 30-year warranty.
• Ø 26/32mm (without connection washer). • For walls ≤ 60mm fix with bracket and screws.
• 30-year warranty. • Ø 26/32mm.
• 30-year warranty.
Ø 32
Ø 32
Ø 28 Ø 55 Ø 32 Ø 55
703-783
780
769400 769500 705028 705000

434 670
Ø 32
Ø 55
Connection washer
Cross wall/recessed Cross wall/recessed Ø 28mm 705028 £23.65
flush tube for WC pans 769400 £43.03 flush tube for WC pans 769500 £65.10 Ø 32mm 705000 £18.17

Wall fixings Sleeve connector Connection kit for disabled WCs
For TEMPOFIX 3 For TEMPOFIX 3 For TEMPOFIX 3

• Fixing kit for upper section of TEMPOFIX 3 • For horizontal evacuation. • Extended supply tube Ø 32mm, L. 580mm.
frame system. • Ø 100/110mm. • Ø 55mm connection washer.
• 2 chrome-plated metal wall fixings, • High-density polyethylene (HDPE). • 30-year warranty.
for reinforcing upper section of frame system. • 30-year warranty.
• For installing if floors are non-load bearing.
• 30-year warranty.
90
118-160
580
Ø 110 Ø 100
85x30 10x1,25 Ø 32

578MUR 578110 578PMR

Connection kit
TEMPOFIX 3 wall fixings 578MUR £41.28 Sleeve connector 578110 £31.68 for disabled WCs 578PMR £20.48
