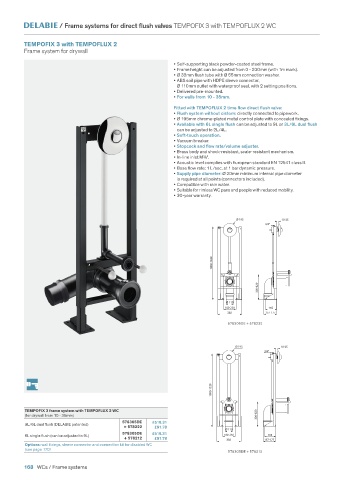

/ Frame systems for direct flush valves TEMPOFIX 3 with TEMPOFLUX 2 WC

TEMPOFIX 3 with TEMPOFLUX 2
Frame system for drywall

• Self-supporting black powder-coated steel frame.
• Frame height can be adjusted from 0 - 200mm (with 1m mark).
• Ø 32mm flush tube with Ø 55mm connection washer.
• ABS soil pipe with HDPE sleeve connector,
Ø 110mm outlet with waterproof seal, with 2 setting positions.
• Delivered pre-mounted.
• For walls from 10 - 35mm.

Fitted with TEMPOFLUX 2 time flow direct flush valve:
• Flush system without cistern: directly connected to pipework.
• Ø 195mm chrome-plated metal control plate with concealed fixings.
• Available with 6L single flush can be adjusted to 9L or 3L/6L dual flush
can be adjusted to 2L/4L.
• Soft-touch operation.
• Vacuum breaker.
• Stopcock and flow rate/volume adjuster.
• Brass body and shock-resistant, scale-resistant mechanism.
• In-line inlet M¾".
• Acoustic level complies with European standard EN 12541 class II.
• Base flow rate: 1 L/sec. at 1 bar dynamic pressure.
• Supply pipe diameter: Ø 20mm minimum internal pipe diameter
is required at all points (connectors included).
• Compatible with rain water.
• Suitable for rimless WC pans and people with reduced mobility.
• 30-year warranty.

Ø 195 10-35
3/4"

1000-1320

300-620

Ø 110
180-230 165
350 157-177
578305DE + 578222

Ø 195 10-35
3/4"

1000-1320

TEMPOFIX 3 frame system with TEMPOFLUX 2 WC
(for drywall from 10 - 35mm) 300-620
578305DE £516.31
3L/6L dual flush (DELABIE patented)
+ 578222 £91.78
Ø 110
578305DE £516.31
6L single flush (can be adjusted to 9L) 180-230 165
+ 578212 £91.78 350 157-177
Options: wall fixings, sleeve connector and connection kit for disabled WC
(see page 170)
578305DE + 578212
168 WCs / Frame systems
