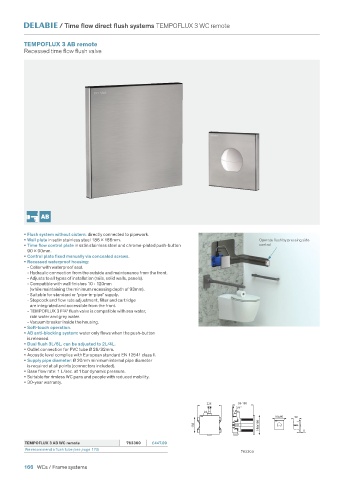

Page 168 - Water_Controls_for_Healthcare

/ Time flow direct flush systems TEMPOFLUX 3 WC remote

TEMPOFLUX 3 AB remote
Recessed time flow flush valve

• Flush system without cistern: directly connected to pipework.
• Wall plate in satin stainless steel 186 186mm. Operate flush by pressing side
• Time flow control plate in satin stainless steel and chrome-plated push-button control
90 90mm.
• Control plate fixed manually via concealed screws.
• Recessed waterproof housing:
- Collar with waterproof seal.
- Hydraulic connection from the outside and maintenance from the front.
- Adjusts to all types of installation (rails, solid walls, panels).
- Compatible with wall finishes 10 - 120mm
(while maintaining the minimum recessing depth of 93mm).
- Suitable for standard or "pipe-in-pipe" supply.
- Stopcock and flow rate adjustment, filter and cartridge
are integrated and accessible from the front.
- TEMPOFLUX 3 F¾" flush valve is compatible with sea water,
rain water and grey water.
- Vacuum breaker inside the housing.
• Soft-touch operation.
• AB anti-blocking system: water only flows when the push-button
is released.
• Dual flush 3L/6L, can be adjusted to 2L/4L.
• Outlet connection for PVC tube Ø 26/32mm.
• Acoustic level complies with European standard EN 12541 class II.
• Supply pipe diameter: Ø 20mm minimum internal pipe diameter
is required at all points (connectors included).
• Base flow rate: 1 L/sec. at 1 bar dynamic pressure.
• Suitable for rimless WC pans and people with reduced mobility.
• 30-year warranty.

225 93-190
3/4"
90x90 50
186x186 11
150

TEMPOFLUX 3 AB WC remote 763300 £447.89
We recommend a flush tube (see page 170)
763300
